Freiberger Geological Stratum Compass w/ Mirror
$545.00
SKU:: F-315.26
MPN: 315.26, 315.27
Manufacturer: Freiberger Präzisionsmechanik
Country Of Origin: Germany

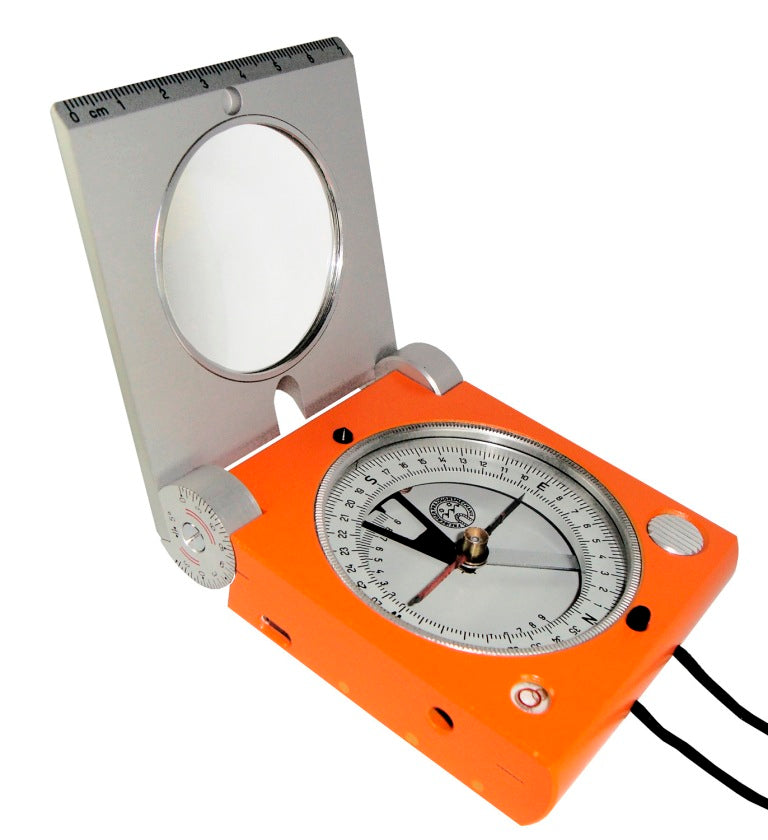

The Freiberger compass is an all-metal, German-made geological compass, based on the design by Dr. Clar, University of Vienna, for measuring azimuths and dip angles. The casing of the compass has a modern appearance and thanks to its design and size it is comfortable and easy to handle. It can be used for general geological studies and to measure the orientation of specific geological structures and natural mineral deposits.
It has a pendulum clinometer. The declination can easily and quickly be set by the user and a small, movable, copper weight is fitted to the magnetic needle to compensate for inclination.
The instrument can be correctly leveled using the circular and the tubular bubble level. The compass lid is used to measure dip direction and it also protects the cover glass when the compass is not used.
It has a pendulum clinometer. The declination can easily and quickly be set by the user and a small, movable, copper weight is fitted to the magnetic needle to compensate for inclination.
The instrument can be correctly leveled using the circular and the tubular bubble level. The compass lid is used to measure dip direction and it also protects the cover glass when the compass is not used.
- Hinged cover has a graduated vertical operation.
- Dip angle graduation is 5 degrees over a range of 225 degrees, with reliable estimation to 1 degree.
- Mirror mounted on the inside of the cover in combination with notch and bead sights on the face of the compass enable accurate sightings to distant objects.
- Compass graduations are 2 degrees with reliable estimation to 0.5 degrees.
- Compass needle is unlocked with a push button.

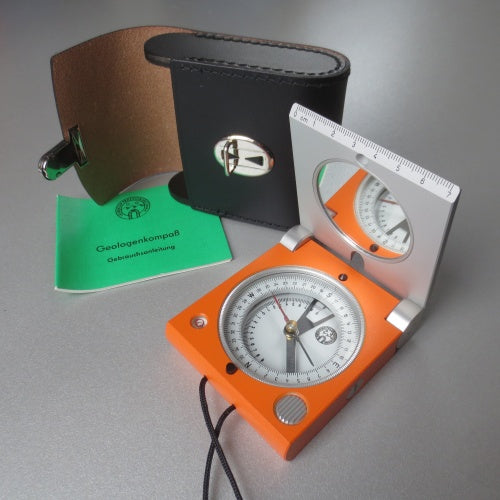

- Includes a durable leather case.
- Freiberger compass dimensions (closed) are 93 x 76 x 22 mm and weight is 320 g.
Specifications:
Compass Azimuth Ring |
counterclockwise, numbered | every 10° |
Diameter | 45mm | |
Scale Graduations | 2° | |
Estimate | 0.5° | |
Dip Clinometer | Diameter | 22mm |
Scale value | 5° | |
Estimate | 1° | |
Leading Edge | Measuring range | ± 90° |
Scale value | 2° | |
Estimate | 0.5° | |
Settling time of the magnetic needle | <50s | |
Directional accuracy | ± 0.5° | |
Declination setting | any | |
Tilting range of the measuring plate | 225° | |
Instrument | Dimensions | 93 x 76 x 22 mm |
Weight | 0.28 kg | |
Bag | Dimensions | 104 x 91 x 45 mm |
