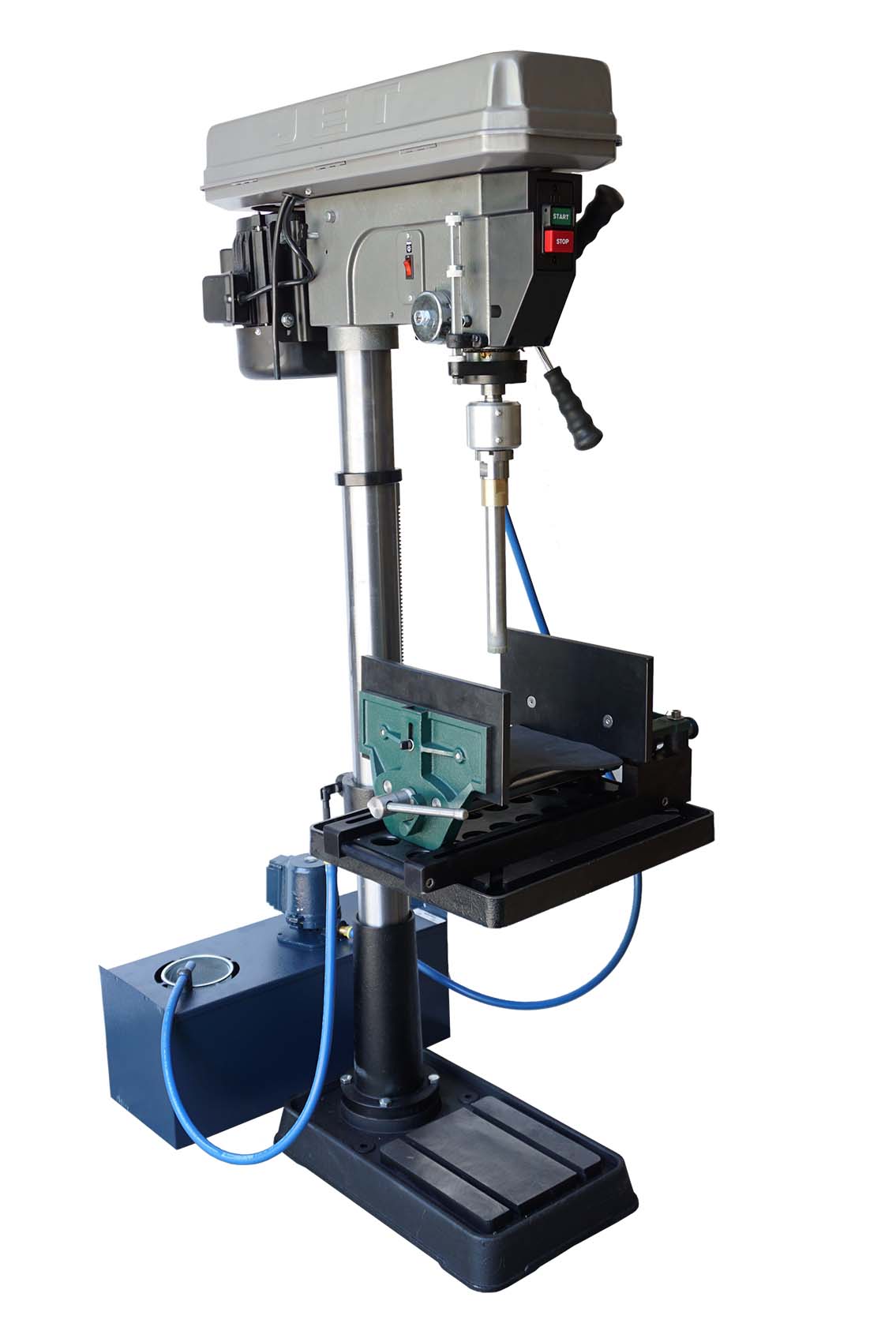

The ASC Model LB-01 Laboratory Core Drill System is designed for taking core sub-samples of geological hand samples and cores in the laboratory.  It consists of a heavy-duty floor standing drill press, fitted with a water swivel, recirculating water system and heavy duty vise to hold the sample being drilled.  This high quality drill press has a wide range of spindle speeds and the water swivel can hold diamond core bits with diameters up to 3″.
  • Heavy-Duty Floor Standing Drill Press
  • Water Swivel securely attached to Drill Press via Morse Taper
  • Water Swivel can hold Core Bits of various diameters and has a 1"-14 NF thread size
  • Re-Circulation System for Water Coolant

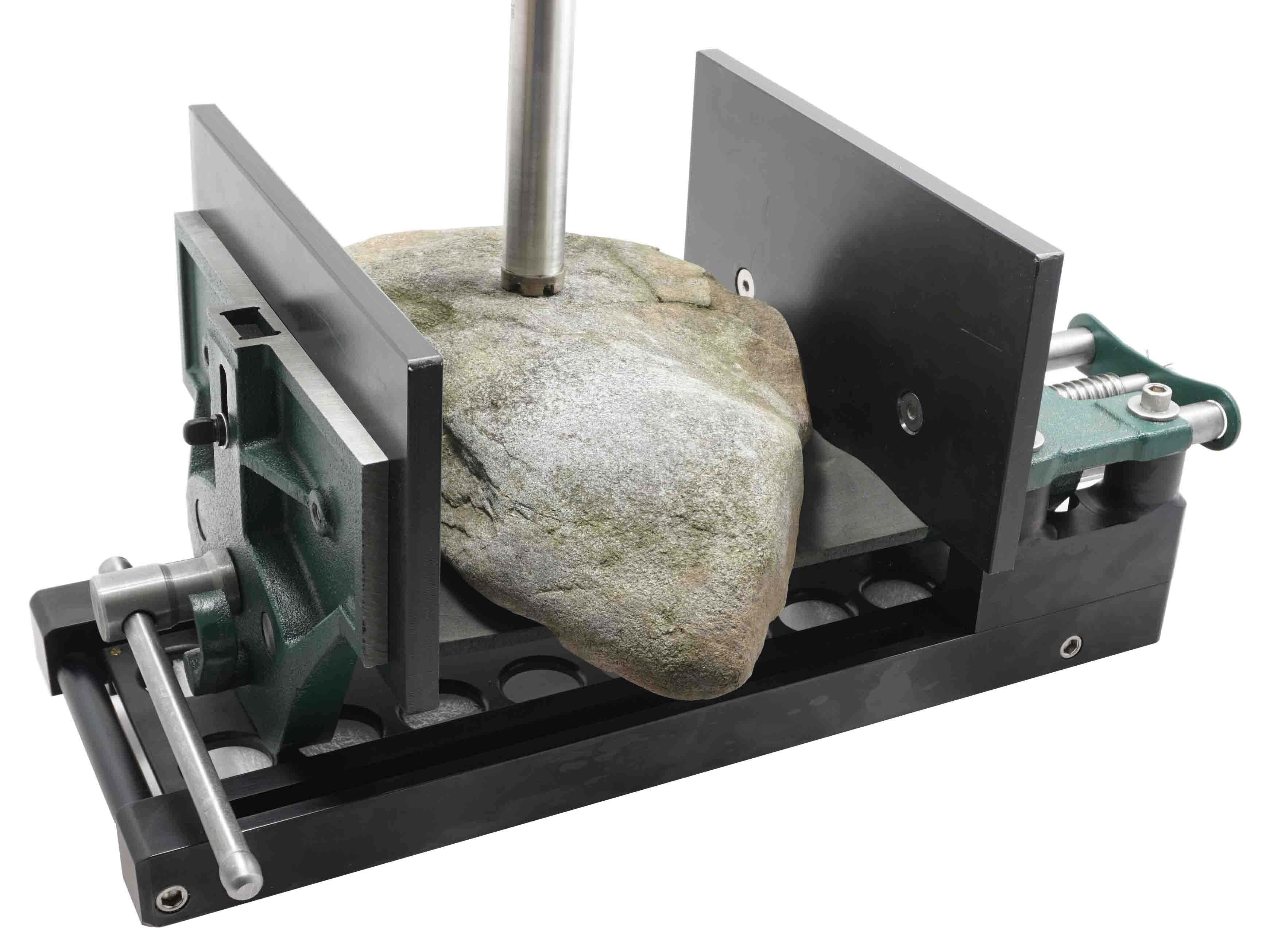

  • Heavy-Duty Vise to hold Sample being drilled
  • Vise opens to 12"
  • 110V / 60Hz or 220 V / 50 HZ available
  • Quick adjustment motor mount for rapid changing spindle speeds
  • On/off switch located on front of drill press head
  • Adjustable tensions spindle return spring
  • Spindle is supported by high quality bearings
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 150 – 4,200
Column Diameter 3-3/8”
Spindle Taper (In x TPI) MT-3
Spindle Travel 4-5/8”
Spindle Distance to Base 46-3/4”
Spindle Distance to Table (Max.) 29-1/8”
Table Travel 21-1/2”
T-Slots Number and Size 6-1/2”
Table Size (LxW) 18-1/2” x 16”
Work Table Weight Capacity 80 lbs
