GeoFactory Dual-Axis 14" / 16" Core Saw
This item is quoted upon request. To receive pricing please add it to your cart, then click the "add to quote" button on the cart page.
Country Of Origin: Spain

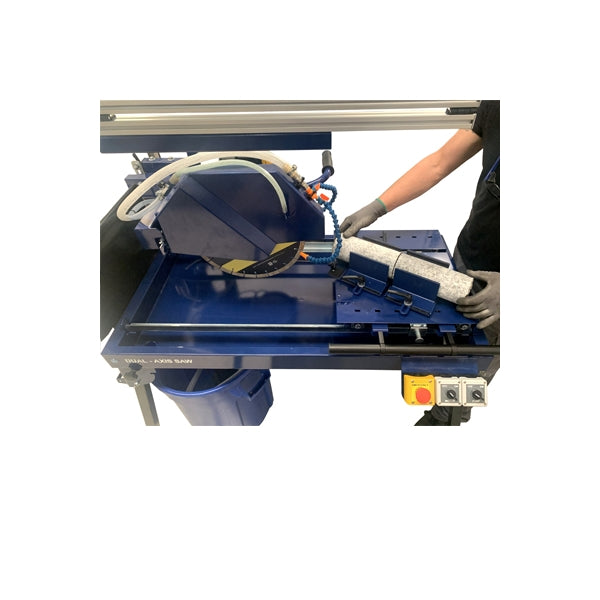

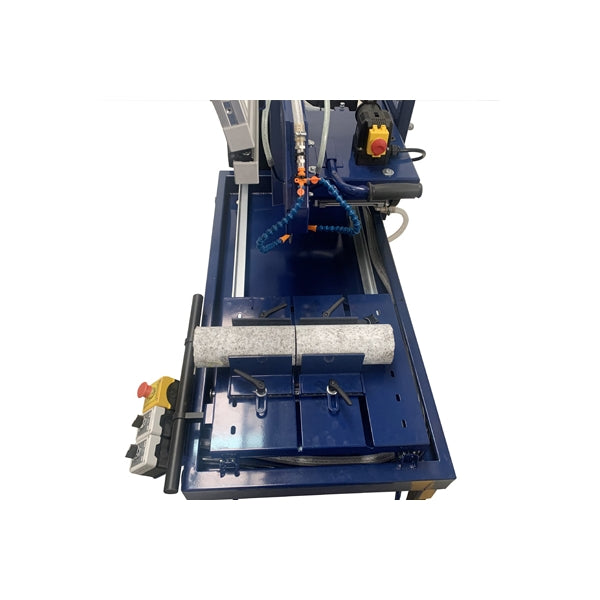

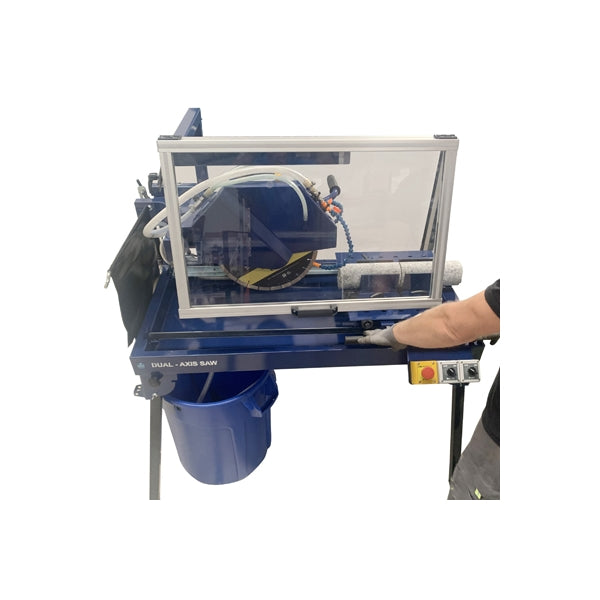

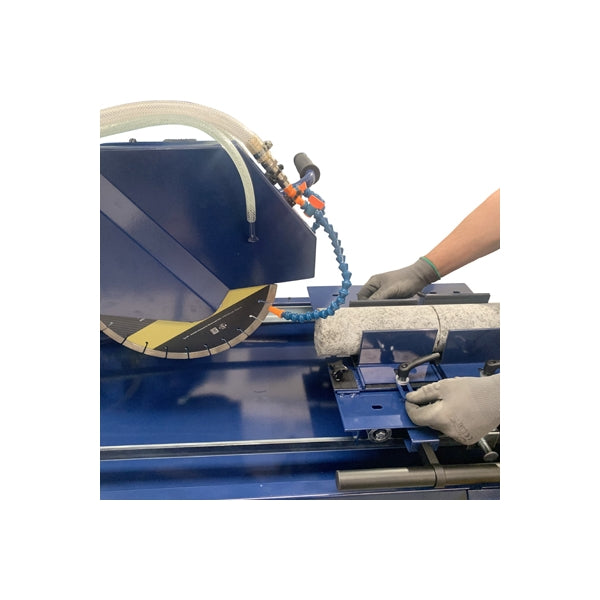

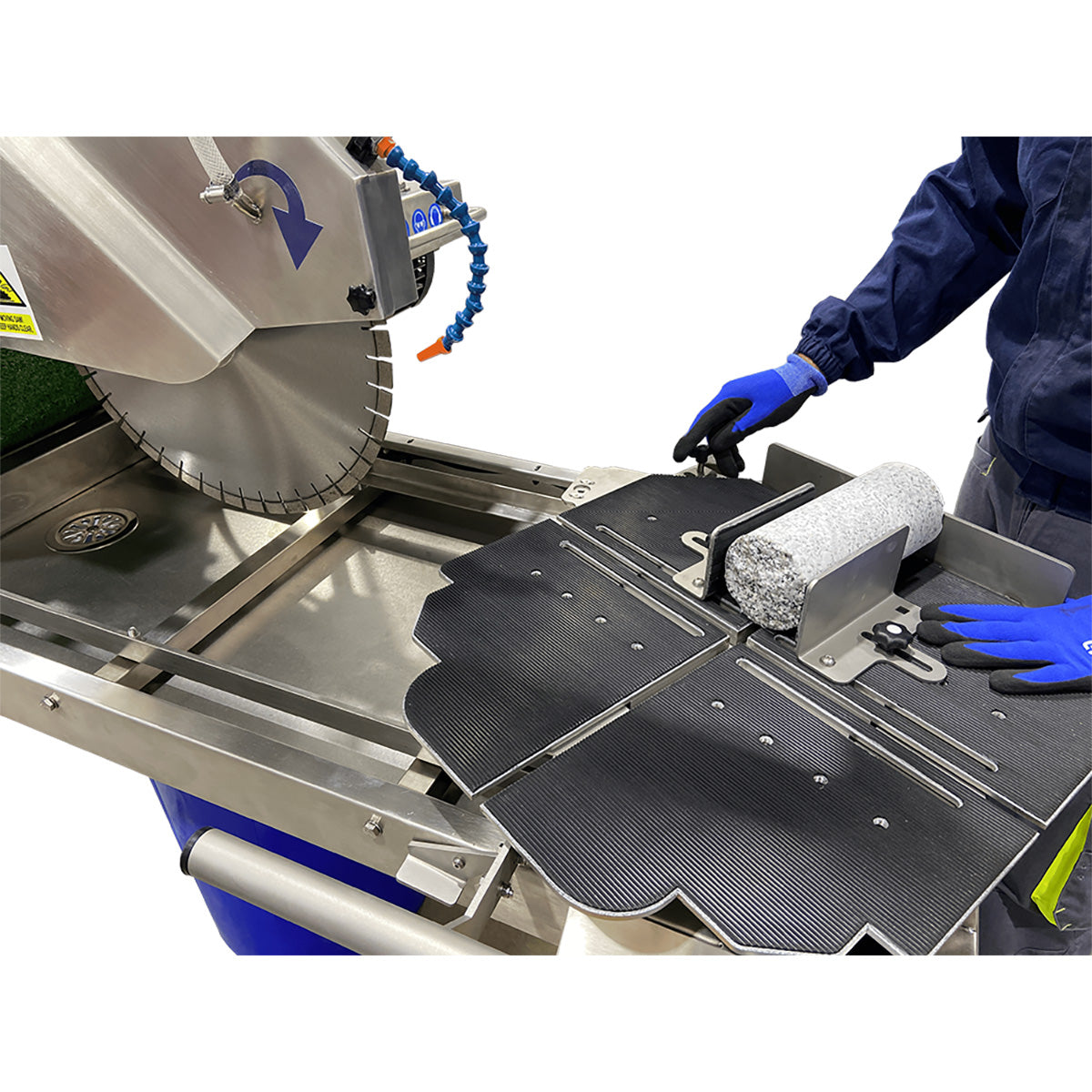

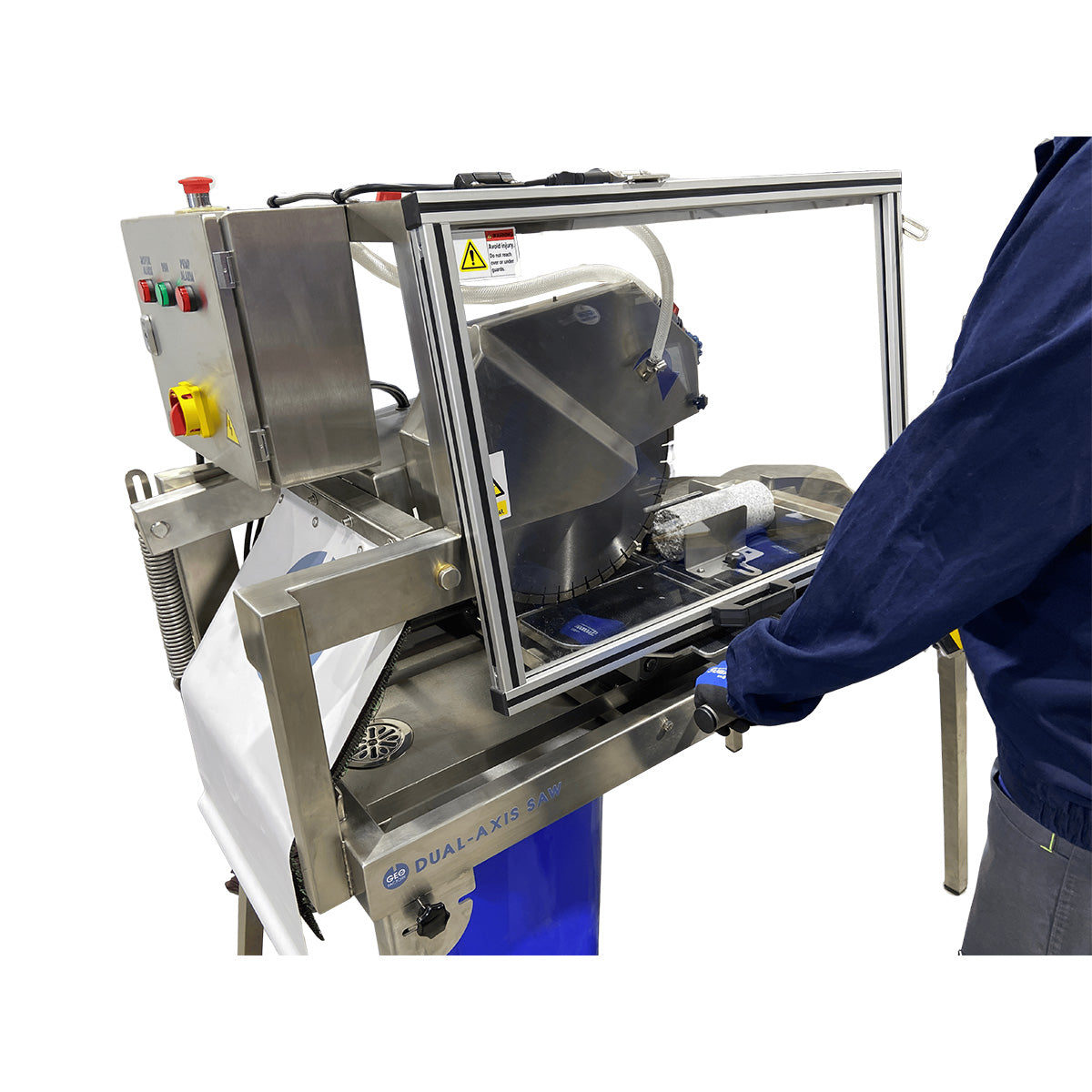

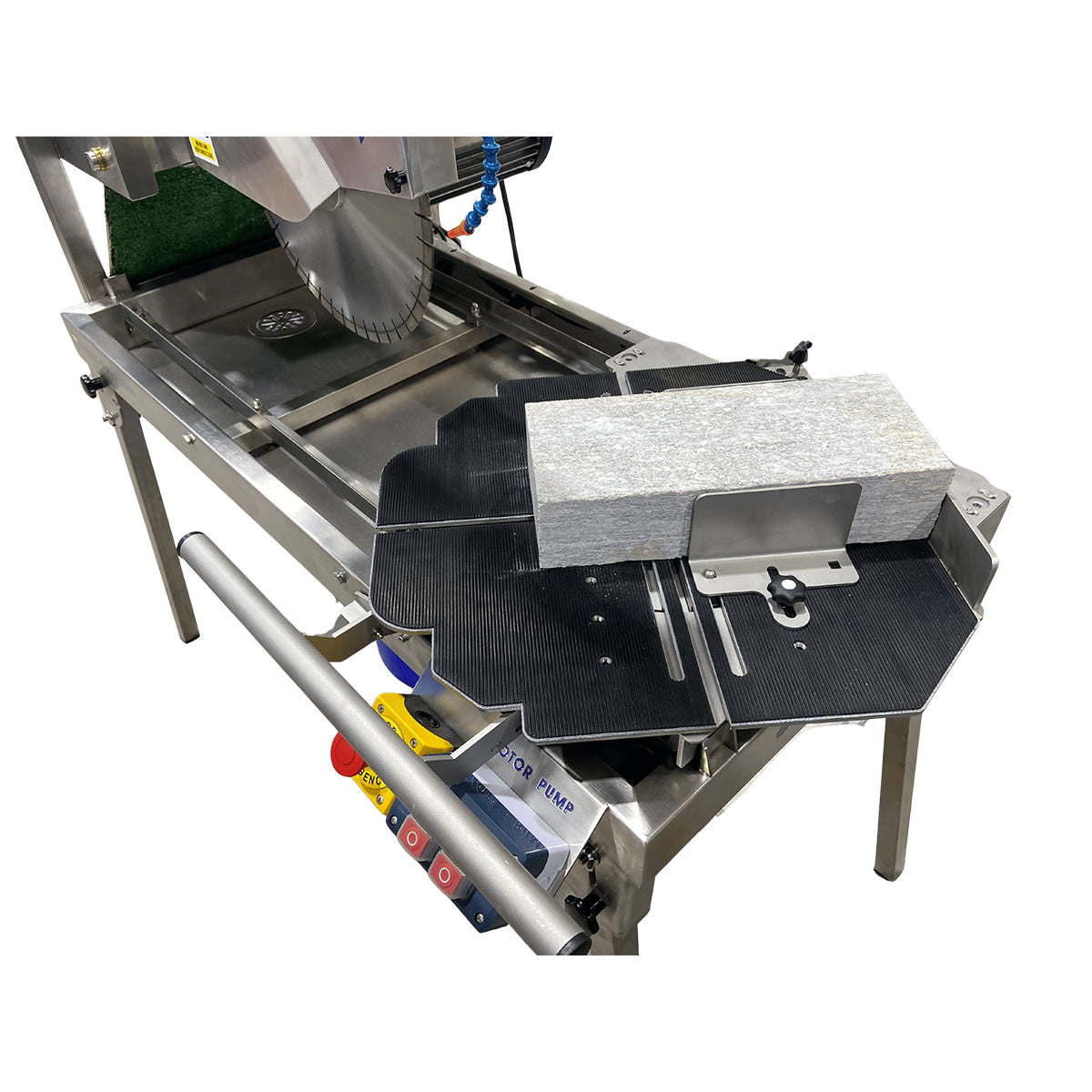

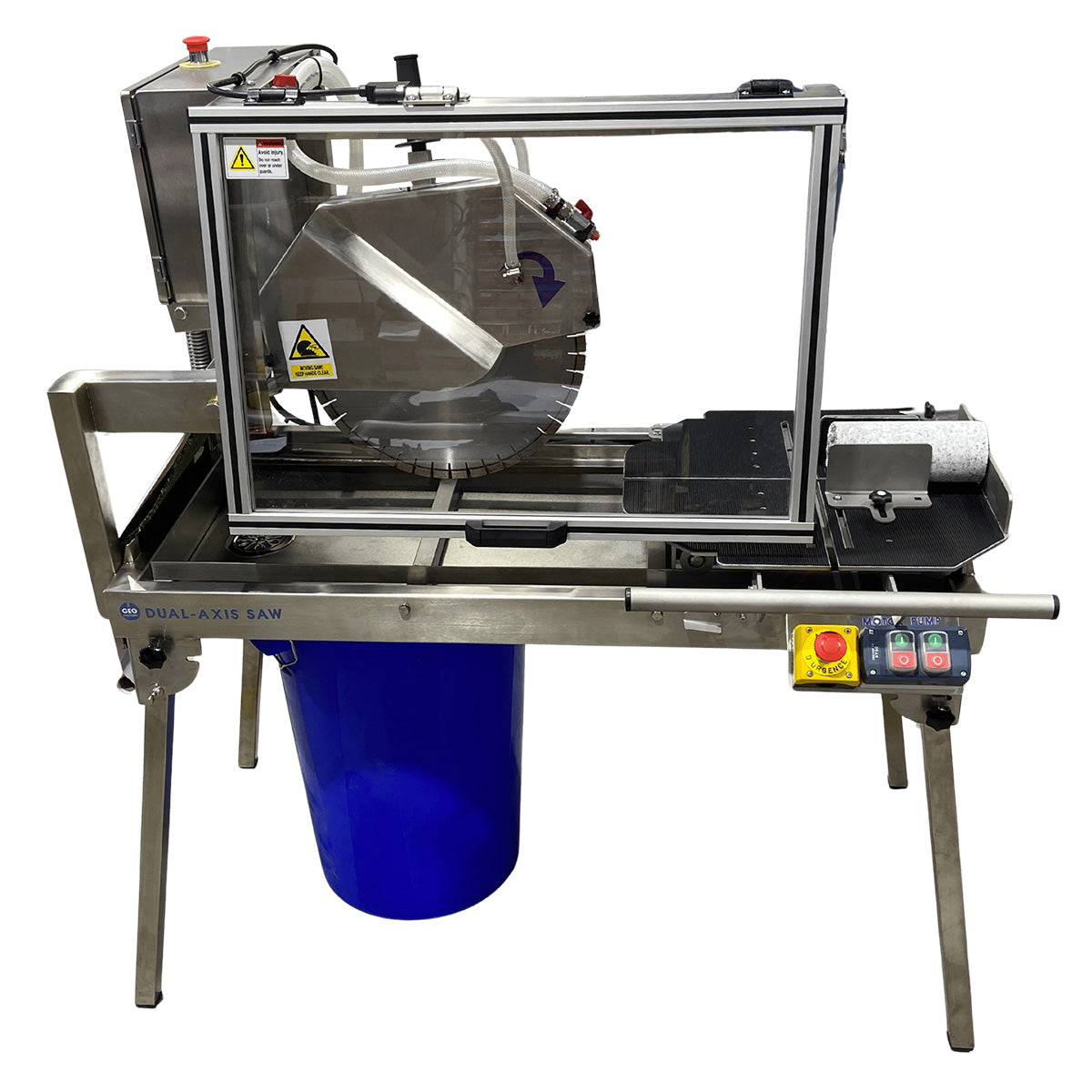

The Dual-Axis Saw by Geofactory precisely cuts geological samples using a diamond saw blade and is now manufactured in stainless steel, ensuring higher durability and corrosion resistance. It is essential for sectors such as oil and gas, mining, and geotechnical studies, where precision is crucial for petrophysical analysis and geological assessments.
The Dual-Axis range of saws has been designed for the preparation of geological samples, pieces of rock, and drill cores. The innovation is in its rotary rock holder, which provides rotating support that allows cutting rock samples at 0° or 90° (slabbing and trimming). Easy to set up and move, this saw is indispensable in both field settings and laboratory environments for rock preparation.
| Material | Stainless steel with aluminum profiles and polycarbonate |
| Dimensions: | 1370 x 780 x 1470 mm / 53.94 x 30.71 x 57.87 in |
| Weight: | 139 kg / 291 lbs |
| Motor | |
| Power supply: | 220-230 VaC / 50- 60 Hz – Single-phase |
| Motor power: | 4 HP |
| RPM: | 2800 |
| Core support | |
| Maximum cutting depth: |
108 mm / 4.15" using a 350 mm blade / 14 inch blade |
| Maximum cutting length: | 500 mm / 19.6" |
| Rotation: | from 0 ° or 90 ° |
| Diamond blade | |
| Diameter: |
350 mm/ 14 inch 400 mm / 16 inch |
| Thickness: | |
| Fluid system | |
| Pump: |
Water pump: 1.1 kW / 50 L / min (Optional) High viscosity pump: 0,37 kW / 300L/min |
| Tank capacity: |
Standard: 100 L (Optional) Decanting tank: 300 L |
