Percussion Mortar and Pestle

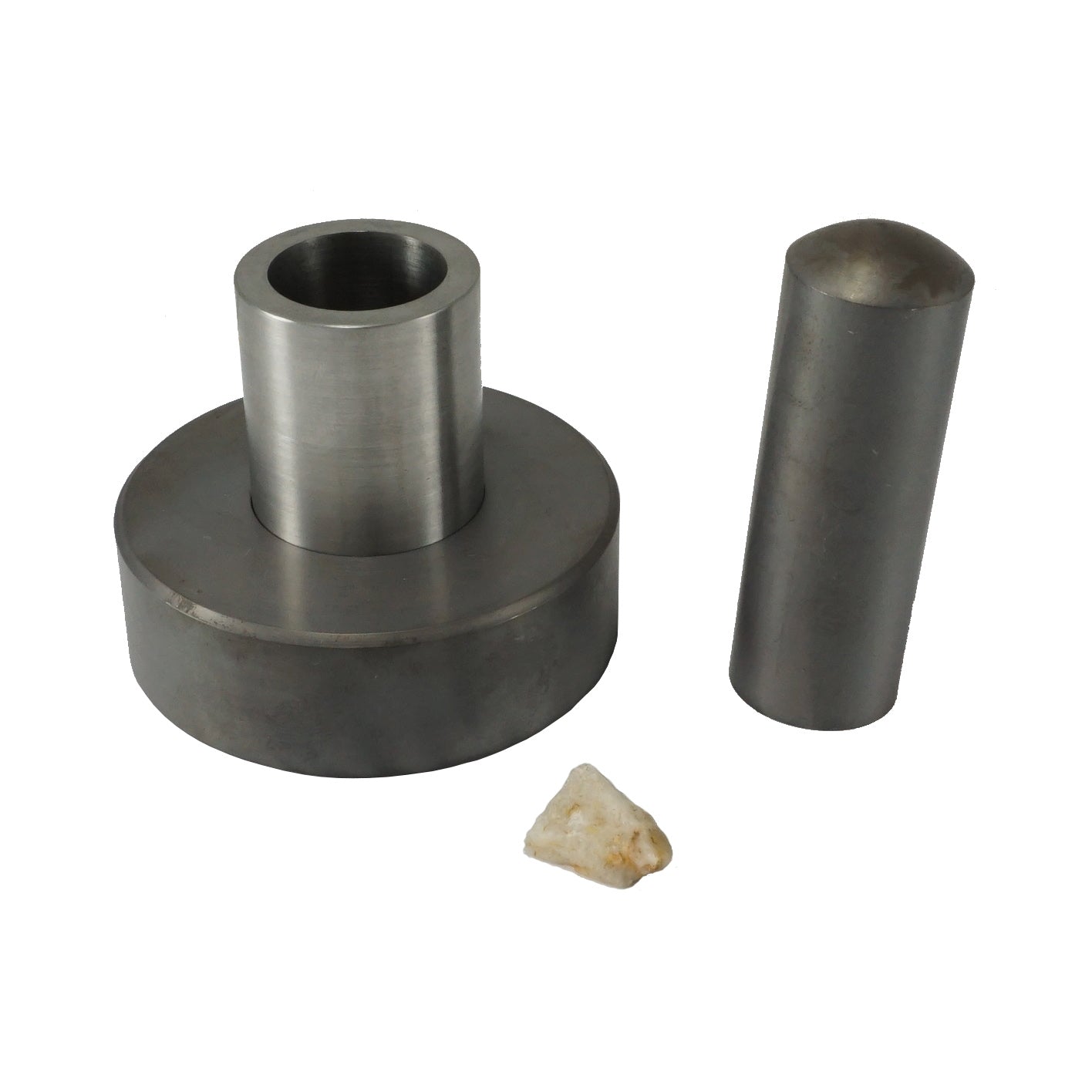

The percussion mortar and pestle are designed for preparation of small samples for analysis by X-ray diffraction (XRD). You simply insert the sample into the cylinder, insert the pestle and strike the pestle repeatedly with a hammer. The resulting product is then sieved to provide the appropriate size range particles for analysis. The unit is robustly constructed of hardened tool steel for long service.  Available in both 1 inch and 2 inch cavity diameters.

Features

• Crush large samples into smaller pieces
• 1" Model
  • Sample cavity is cylindrical: 1" diameter x 1.75" height
  • Volume of sample cavity is 1.4 inches³
  • Base is 3" wide

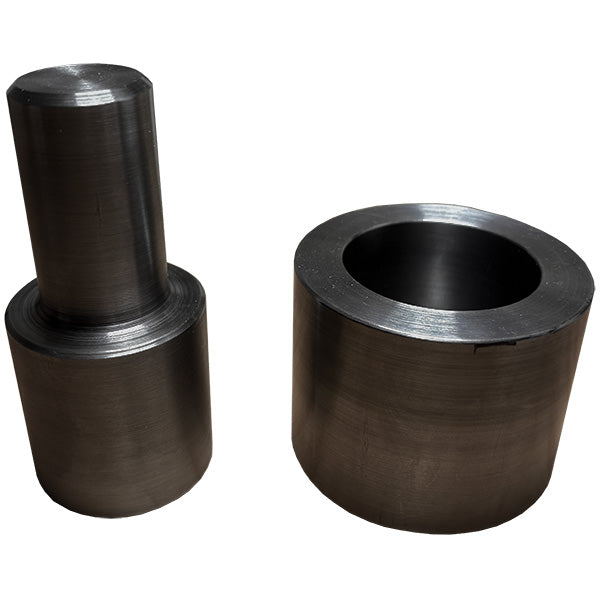

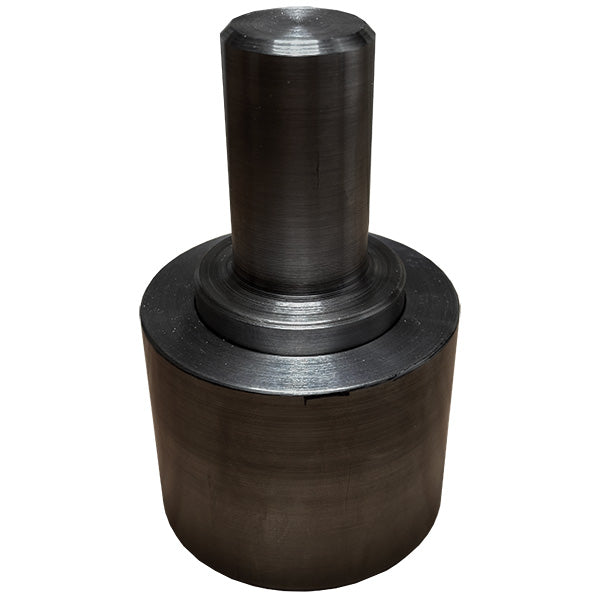

• 2" Model
  • Sample cavity is cylindrical: 2" diameter x 1.75" height
  • Volume of sample cavity is 5.49 inches³
  • Base is 3" wide
• Base and Pestle made of hardened tool steel
• Easy to use

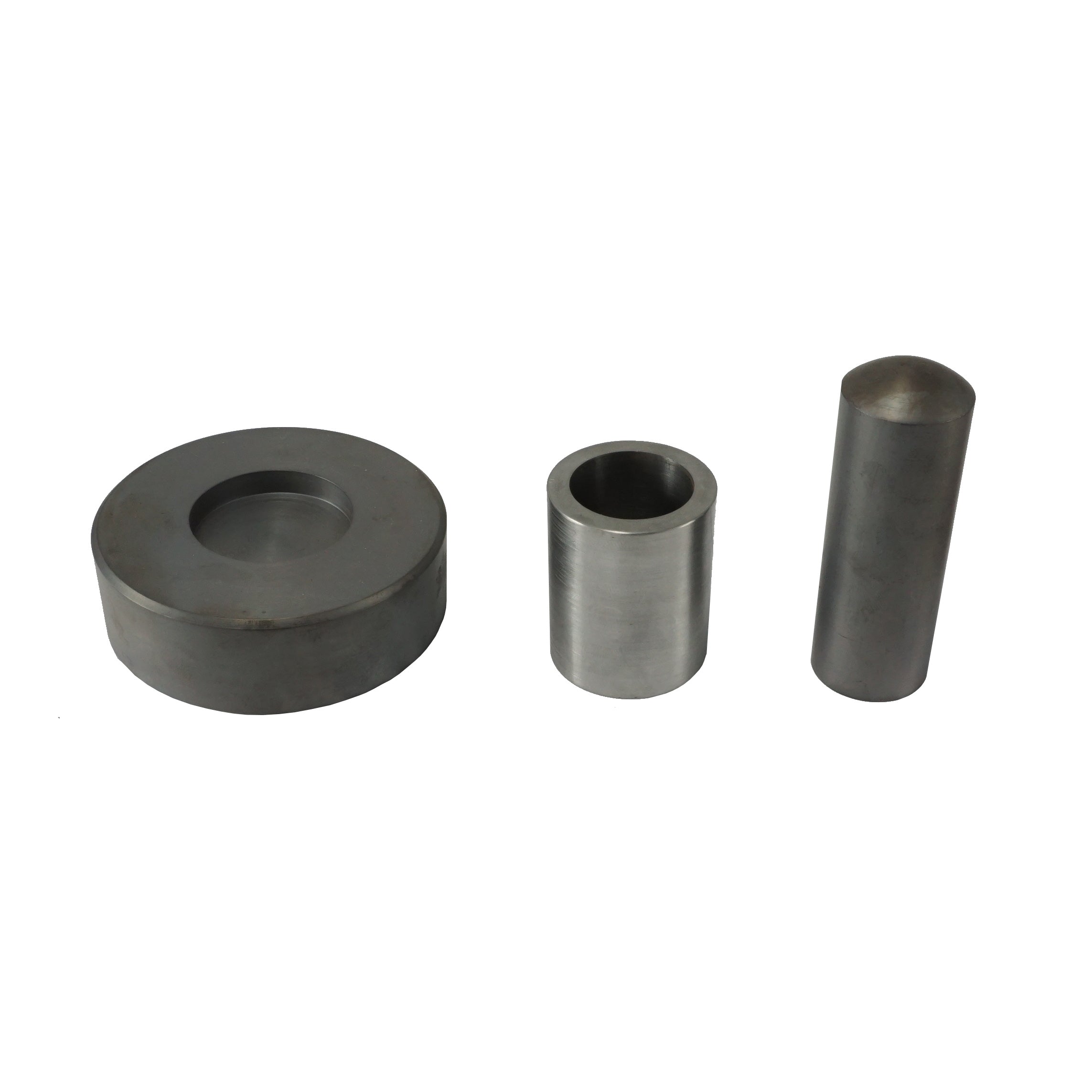

• Simple to disassemble for cleaning
• Custom sizes available upon request
