Hi-Tech Diamond™ 6" Trim Saw
⚠ This item is expected to ship approximately 3 business days after placing your order. Read our shipping policy for more details.
MPN: 22-319 | 22-327 | 22-321 | 22-325
Manufacturer: Hi-Tech Diamond
Country Of Origin: USA

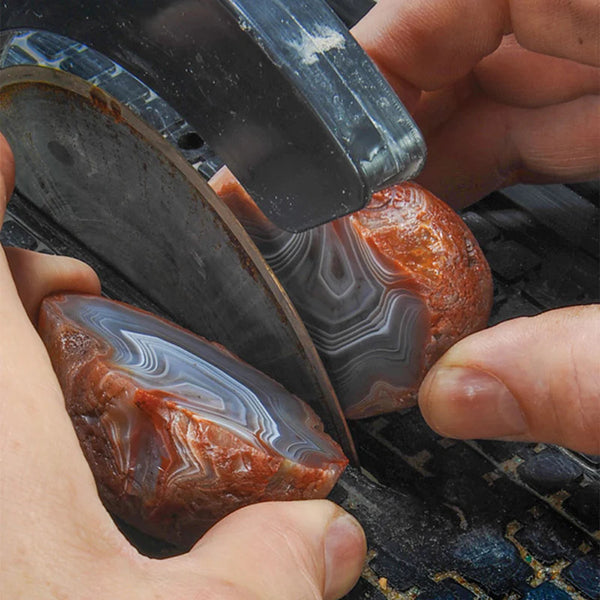

The High Tech Diamond, American-made 6″ trim saw is the perfect saw for trimming-out cabochon preforms in rocks, minerals and glass, or to cleanly trim facet material. This saw includes TWO different types of 6″ saw blades to best-suit your cutting material; one economy silver notched diamond saw blade and one premium, long-lasting red sintered diamond saw blade. Saws are available with or without the saw vise accessory.
The Hi-Tech Diamond 6" trim saw is manufactured with a 5/8" arbor and will accept any 6" saw blade that has a 5/8" arbor. The saw table has a large work area, measuring 15-1/2" L X 9" W. The housing is made of unbreakable, cross-linked polyethylene that makes it rustproof and easy to clean. Installed in each saw is a 1/4 hp, heavy-duty, direct drive permanent magnet motor with sealed ball bearings. The motor is variable speed and can deliver speeds from 800 to 3,400 rpm. The coolant reservoir is built right into the base of the machine and can hold up to 16 ounces of water. The removable saw table that covers the reservoir makes cleanup easy. The splash guard that comes with the machine keeps water off you and on your piece, making it easier for you to work.
This Hi-Tech Diamond 6" trim saw machine comes with TWO different types of 6" saw blades to best-suit your cutting material. The silver notched diamond saw blade is designed for cutting rocks and minerals such as turquoise, aqua, garnet, corundum, emerald and ruby, while the red sintered diamond saw blade is designed for cutting pieces of glass, topaz, quartz and fine agates.
Specifications
- Perfect saw for trimming-out cabochon pre-forms
from rock slabs of all types or to cleanly trim facet
material - Machine dimensions: 17" L X 17" W X 11" H
- Machine weight: 15 lbs
- Saw housing construction: rustproof, cross-linked polyethylene
- Motor type: 1/4 hp variable speed direct drive motor with speeds ranging between 800 rpm - 3,400 rpm
- Motor voltage: 115V or 220V
- 5/8" arbor
- Saw blade height: 1-3/4"
- Saw blade depth: 5-1/4"
- Country of origin: U.S.A.
- Shipped from: U.S.A.
What's Included
- 6" x .012" x .015" silver notched diamond saw blade
- 6" x .015" x .023" red sintered diamond saw blade
- Black spray shield
- Allen wrench
- Hi-Tech Diamond waterproof apron
- Complete written and visual instruction manual
- One-year manufacturer warranty
Optional Accessories

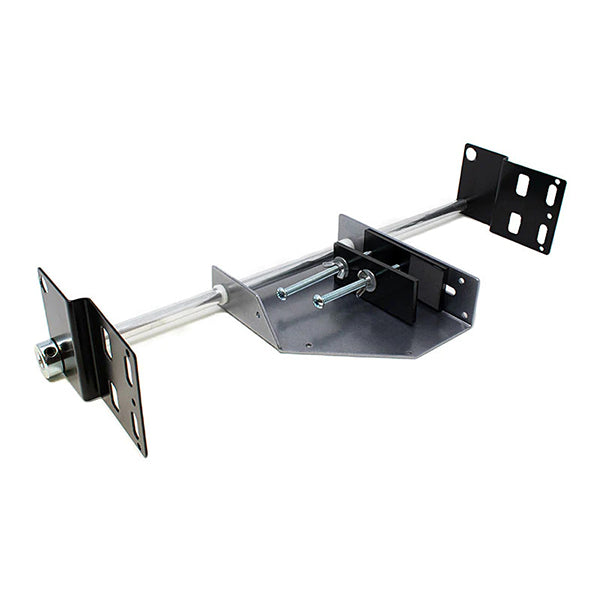

Rock Vise
Save your fingers! Our saw vise attachments secure your rock, mineral and glass pieces while you cut so you don't have to put your hands near the saw blade. Simply bolt this accessory on your Hi-Tech Diamond saw machine, secure your material, then manually advance the carriage to feed your material evenly into the saw blade. Get safe, precise cuts every time! Made exclusively for the Hi-Tech Diamond 6″ trim saw
Saw Fence
The Hi-Tech Diamond saw fence securely fits onto the Hi-Tech Diamond 6″ trim saw and 10″ slab saw tables to aid in precise alignment of your material for accurate cuts. It is easily adjusted to accommodate the size of your material.
Please note: There is no size difference; this saw fence fits and is compatible with both the 6" trim saw and 10" slab saw machines ONLY.
International Customers - Please contact us for a quotation!
The 220 volt models are available only for overseas customers that require 220V - 240V power supply. All 220 volt models are manufactured with this CE rated, Type F plug (see below):
FAQ
What are the key features of the Hi-Tech Diamond 6" Trim Saw?
This saw is ideal for trimming and slabbing small pre-forms from rock or cleanly trimming facet material. It includes a rustproof housing, a 1/4 hp variable speed motor, and two different blade types for cutting various materials.
What materials can the Hi-Tech Diamond 6" Trim Saw cut?
Designed for rocks, minerals, and glass, it comes with blades suitable for materials like turquoise, garnet, corundum, and even glass and fine agates.
What safety features does the Hi-Tech Diamond 6" Trim Saw include?
It includes a spray shield and optional vise attachment, enhancing safety by securing the material and shielding the user from debris.
Can the Hi-Tech Diamond 6" Trim Saw be used with different voltage systems?
Yes, it is available with either a 110V or a 220V motor, making it suitable for use in various international settings.
What is the warranty for the Hi-Tech Diamond 6" Trim Saw?
It comes with a one-year manufacturer's warranty.
Is the Hi-Tech Diamond 6" Trim Saw suitable for professional use?
Yes, its robust features and optional accessories make it ideal for both professional lapidaries and hobbyists.
How do I maintain the Hi-Tech Diamond 6" Trim Saw?
Regular cleaning of the coolant reservoir and blade checks are recommended to keep the saw in optimal condition.
