ASC Orienting Fixture
$212.00
SKU: OD1-000
Country Of Origin: ASC Scientific

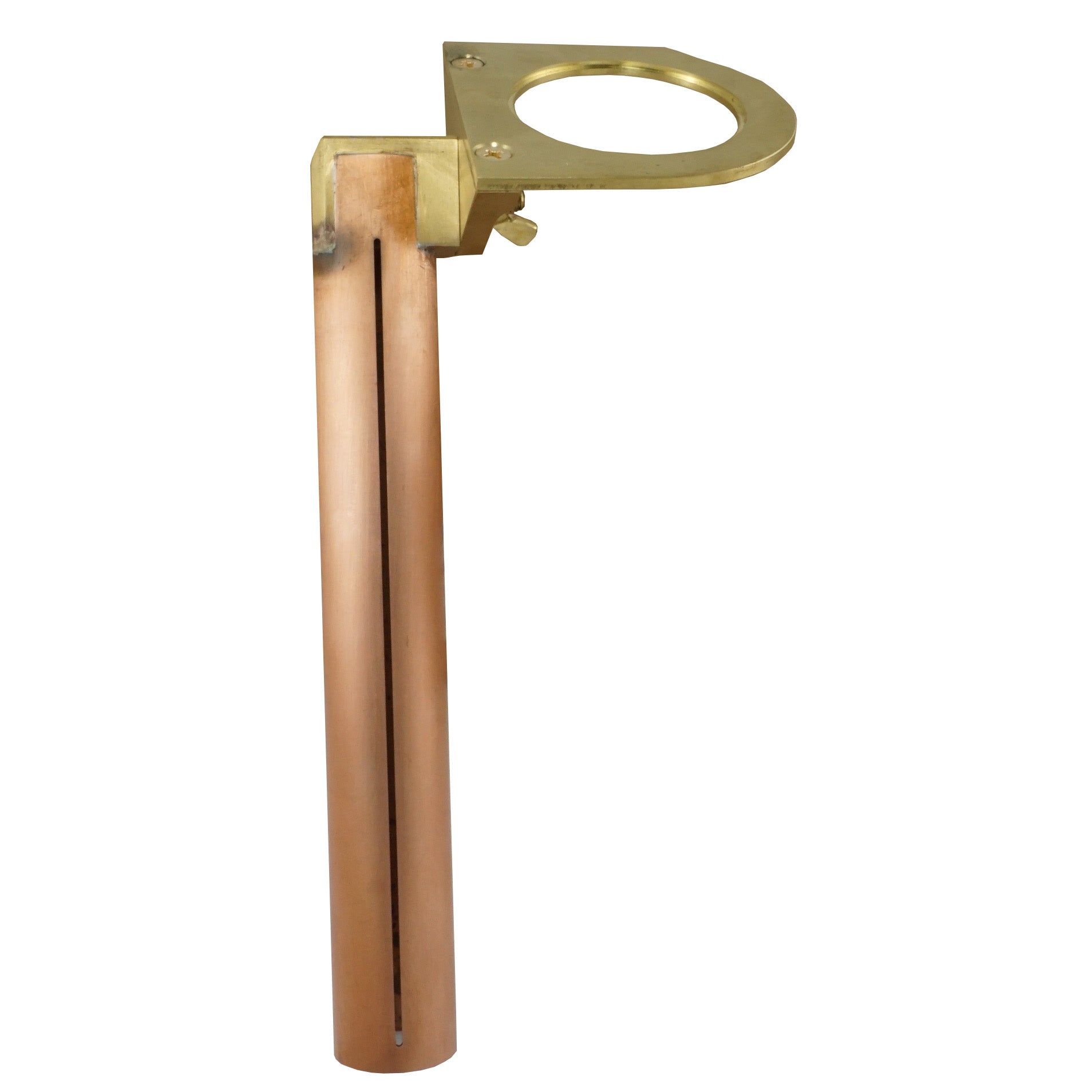

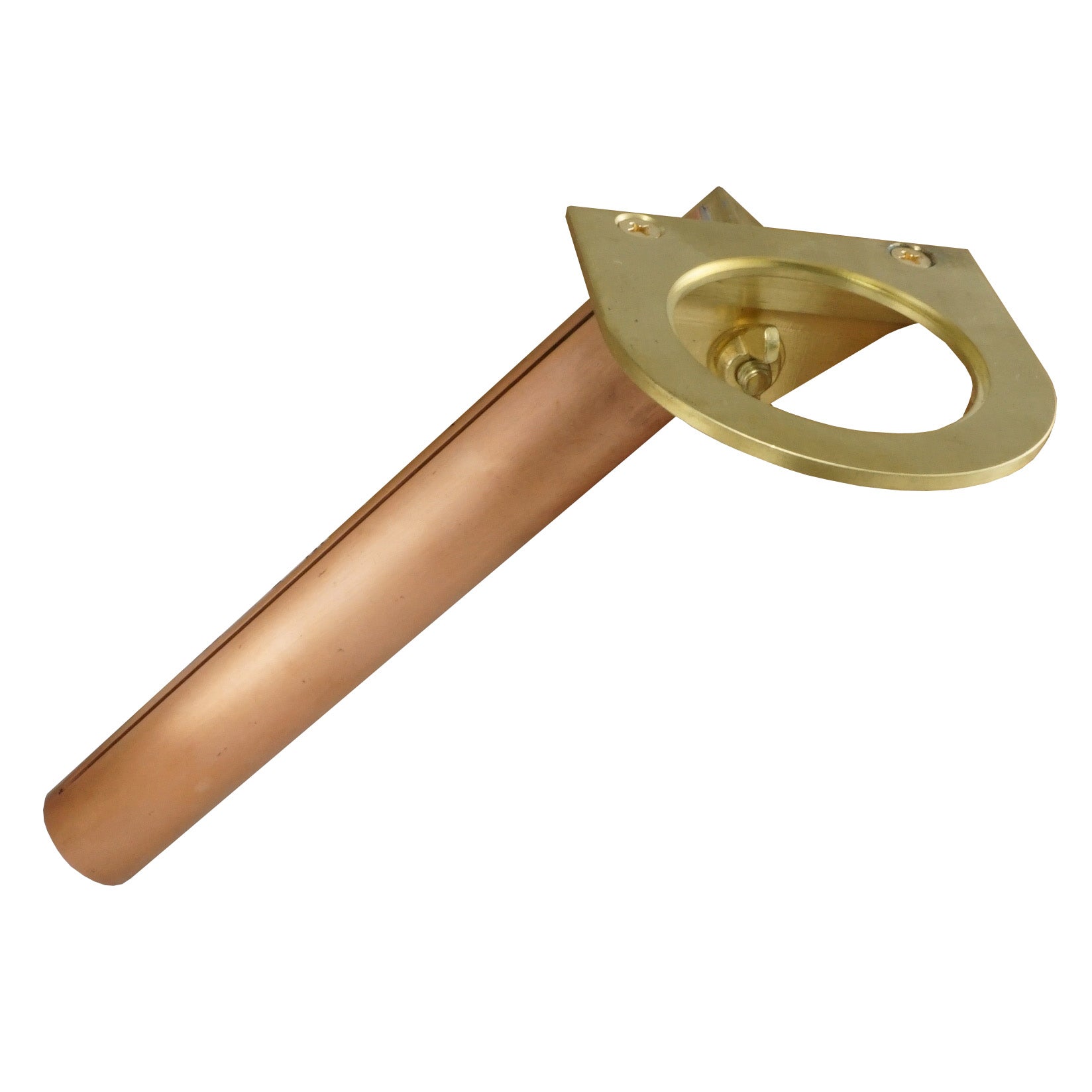

This simple, rugged orienting fixture is designed for rapid orientation of in-place 1" (nominal) cores using a Brunton pocket transit. The copper tube has a slot for marking the top of the in-place core. The brass orienting platform is machined to accept a Brunton compass for making azimuth measurements. Dip measurements are made using the Brunton placed on the portion of the tube extending out from the outcrop.
Orienter will accommodate the Conventional, International and ComPro models only.
