BD-168765 BD-7 Trim Saw with Vise & Splash Hood
220V / 50Hz
BD-7 Trim Saw with 220V / 50Hz Motor
$1,946.00
Manufacturer: Barranca Diamond
Country Of Origin: USA

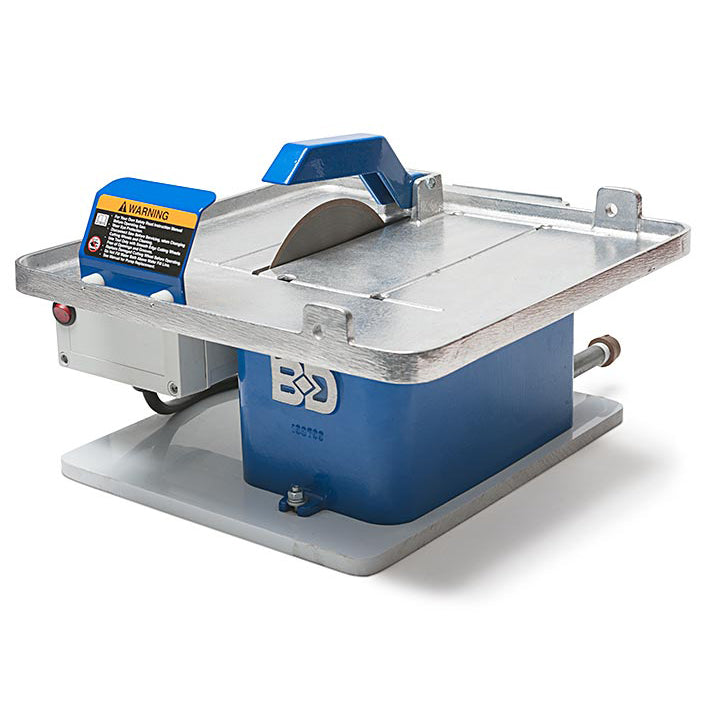

The Barranca Diamond BD7 Trim Saw has a large 14″ x 14″ cutting surface and a direct drive motor for reliable, smooth, quiet operation. The table top tilts up and out of the way for blade changes, adding fluid, or cleaning.
Features:
- All cast aluminum tank, table and blade guar
- Table surface is hardened by ball burnishing for longer life
- Easy to clean tank with fluid drain hose and sludge removal plug
- Mounted on a 1/2″ polypropylene base
- Includes a 7″ 303C Pro lapidary diamond blade
- 220 volt motor available on request
- Splash hood and rock vise are optional
| Part # (with vise and splash hood) | |
| Motor | Soga MR48 1/3 hp |
| Voltage* | 220V/50Hz |
| Amperage | 4.4 |
| Motor RPM | 3,300 |
| Blade Hub | 5/8″ |
| Blade Capacity | 7″ |
| Oil Capacity | .3 Gallons |
| Depth Of Cut | 1-3/16″ |
| Max. Vise Opening | 2-3/4″ |
| LxWxH | 17″ x 18″ x 12″ |
| Saw Weight | 28 lbs. |
BD-7 With Splash Hood
BD-7 Splash Hood
BD-7 Vise
